16 Channel USB Pluggable GPIO Module
SKU:
Request For QuoteWanna Customize? Drop Us A Line!

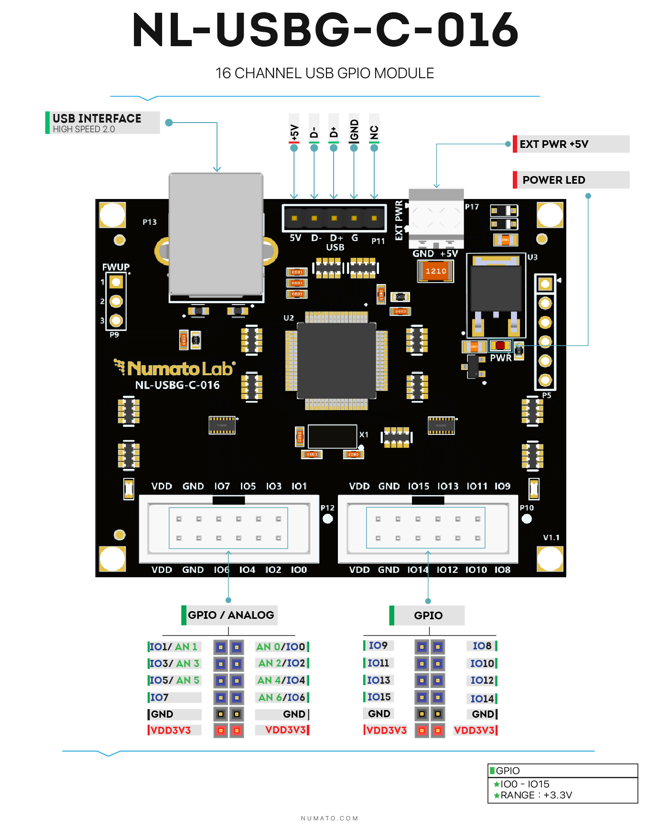

Numato Lab’s 16 Channel USB Pluggable GPIO Module (NL-USBG-C-016) is a great product for controlling electrical and electronic devices remotely from a PC or Mobile Device over USB link. Built-in USB to serial conversion allows the module to be used, without any specific knowledge about USB.
Features
- 16 TTL (3.3V) compatible GPIOs
- 7 Analog input channels (Multiplexed with GPIOs)
- 10 Bit Analog input resolution
- All GPIOs can be individually configured as input or output.
- GPIO contacts available on easy to plug headers
- Can be controlled by using standard serial console applications or custom applications.
- readall/writeall support to read/update all GPIOs with a single command
- Onboard controller can be reprogrammed for custom applications
Applications
- Building automated test fixtures
- Add more IOs and Analog channels to industrial/modular computers
- Add more IOs and Analog channels to Raspberry Pi, Intel Edison, BeagleBone and similar CPU boards
- Add IOs to Android-based systems (Smartphones, Tabs and custom devices)
Specifications
| Attribute | Value |
|---|---|
| Number Of GPIOs (Max) | |
| IO Header | Header on Top, Header on Bottom |
| Analog Inputs(Max) | |
| Host Interface | |
| Analog Input Resolution | |
| Multiplexed Analog Inputs | |
| Mating product (Connector) | Molex : 22-55-2122, DF11-12DS-2DSA(05) |
| Package Contents | |
| Warranty | |
| RoHS | Yes |
| Operating Temperature | -30°C to +85°C |
Sample Code
Sample Code
| Language/Technology | IDE/Compiler | Type | OS | Download link |
|---|---|---|---|---|
| Python | Python | Command Line | Windows | Download |
