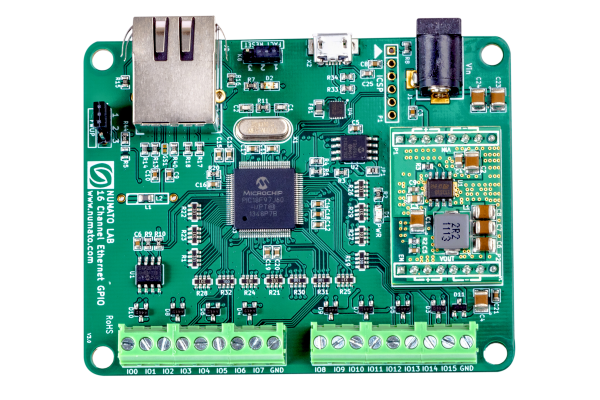

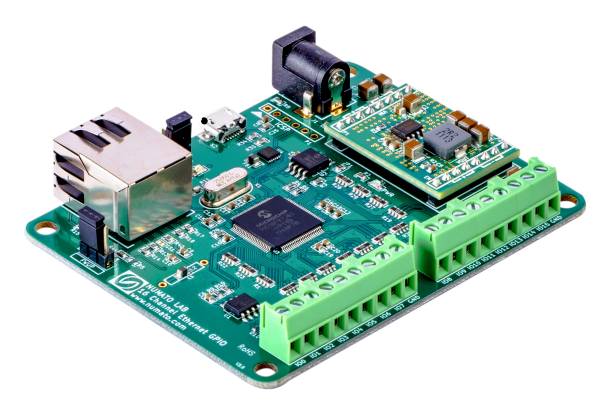

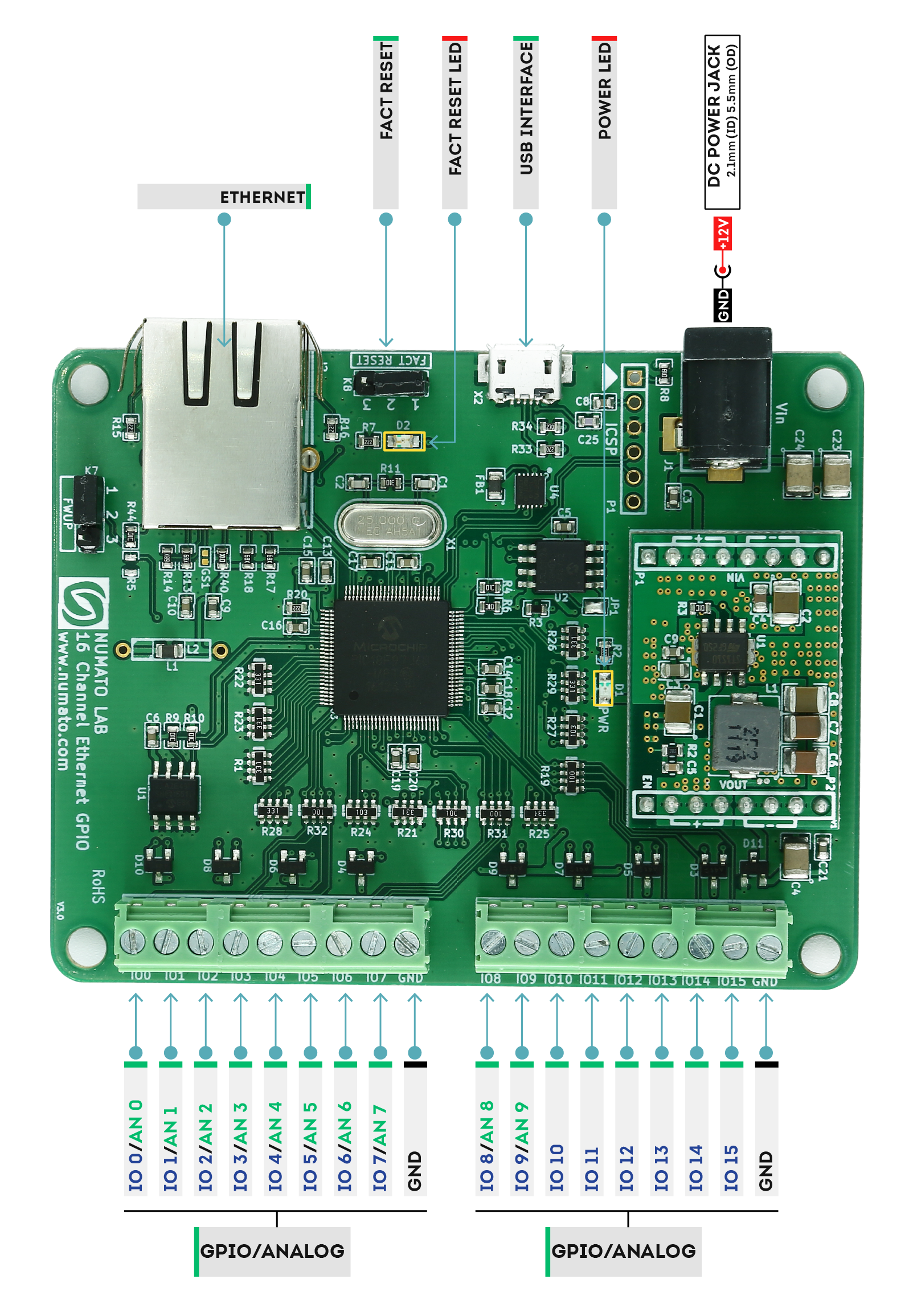

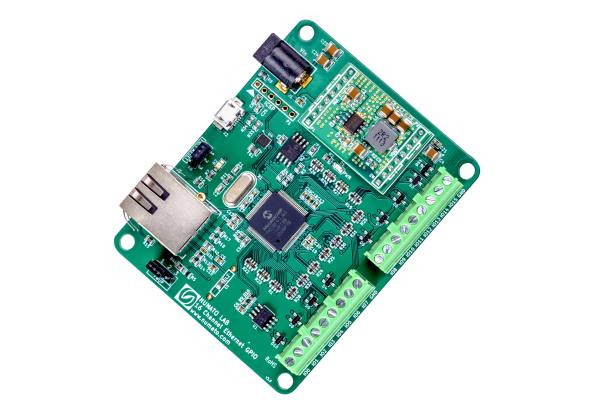

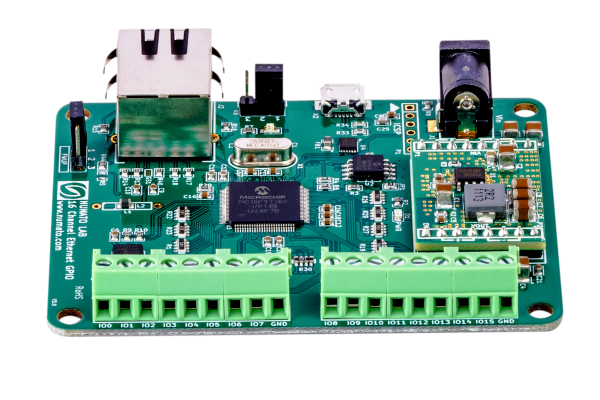

16 Channel Ethernet GPIO Module With Analog Inputs
Request For QuoteWanna Customize? Drop Us A Line!
Numato’s 16 Channel Ethernet GPIO module is low cost easily deployable solution for connecting your PC to other electronic circuitry through a network. This GPIO module can be accessed through a simple web interface or Telnet. Ease of use and wider operating system compatibility are the primary goals behind this product’s design. This simplicity allows the use of off-the-shelf Terminal Emulation programs such as HyperTerminal and TeraTerm for controlling the module with a simple set of human-readable commands through Telnet or through easy to use Web interface. For power users, this module can be controlled by writing programs in various programming languages.
Features
- 16 TTL (3.3V) compatible GPIOs available
- All GPIOs can be individually configured as input or output
- Can be controlled by using a simple web interface or Telnet
- No TCP/IP protocol knowledge required
- 10 Analog input channels (Multiplexed with GPIOs)
- 10 Bit Analog input resolution
- 2,25ma Source/Sink capacity(depend on the IOs).
- Unique MAC Address.
- Reset Jumper: Resets the board to factory defaults.
- Password-protected Web console and Telnet communication interface.
- LED indication for Power.
Applications
- Home Automation
- Lighting Control
- Garden Equipment Control
- Industrial Automation
- Test Fixtures
- DIY and Hobby
Specifications
| Attribute | Value |
|---|---|
| Weight | 0.15 lbs |
| Dimensions | 5 × 3 × 1 in |
| Product Dimensions | 3.30 x 2.60 x 0.78 in |
| Number Of GPIOs (Max) | 16 |
| Number of ADC Inputs | 10 (Multiplexed with IOs) |
| ADC Resolution | 10Bit |
| IO Voltage | 3.3V |
| Communication | 10BASE-T Ethernet |
| User Interface | HTML/Web, TELNET |
| Operating Temperature | -30°C to +85°C |
