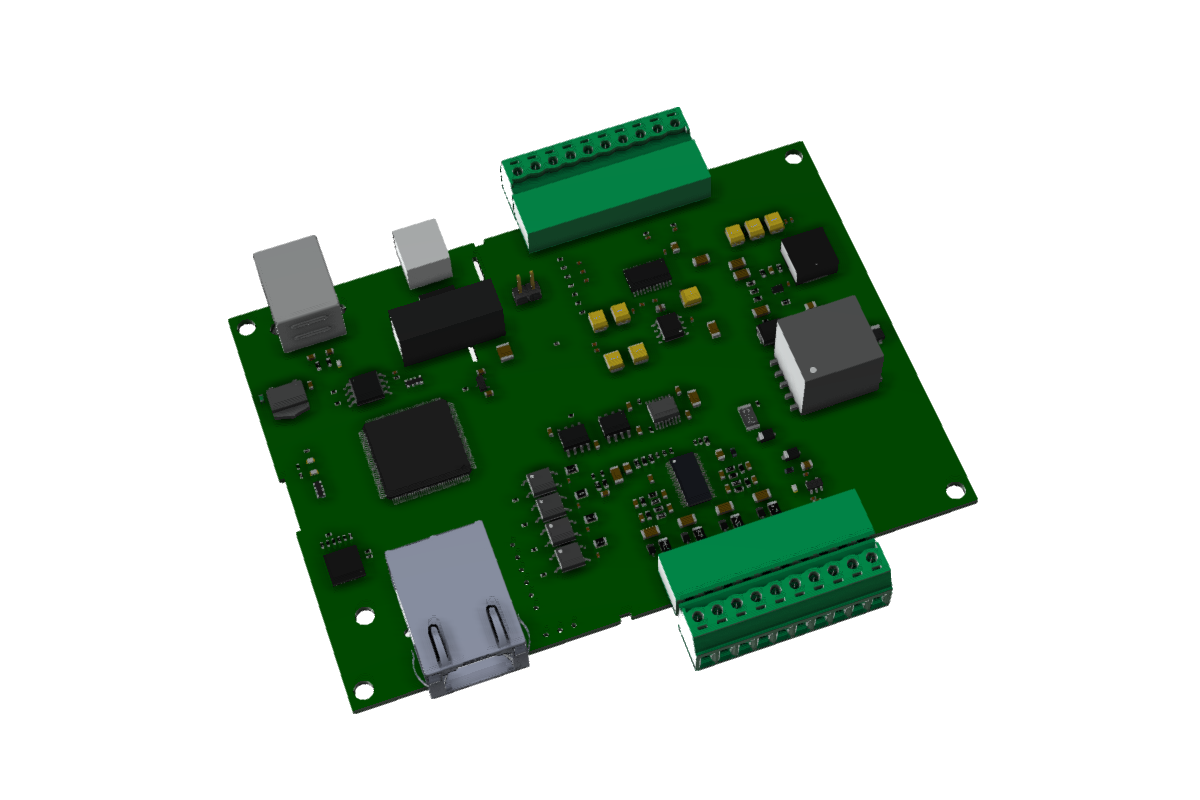

4 Channel Ethernet ADC-DAC module
Request For QuoteWanna Customize? Drop Us A Line!
Numato Lab’s 4 Channel Ethernet ADC-DAC Module is an ADC/DAC solution for connecting your PC to other electronic circuitry through a network. This module can be accessed through a simple web interface, Telnet, or HTTP commands. Ease of use and wider operating system compatibility are the primary goals behind this product’s design. This simplicity allows the use of off-the-shelf Terminal Emulation programs such as PuTTY, and TeraTerm for controlling the module with a simple set of human-readable commands through TELNET, HTTP, or an easy-to-use Web interface. For power users, this module can be controlled by writing programs in various programming languages.
Features
- 4 Analog Inputs with 16-bit resolution
- 4 Digital To Analog Converter inputs

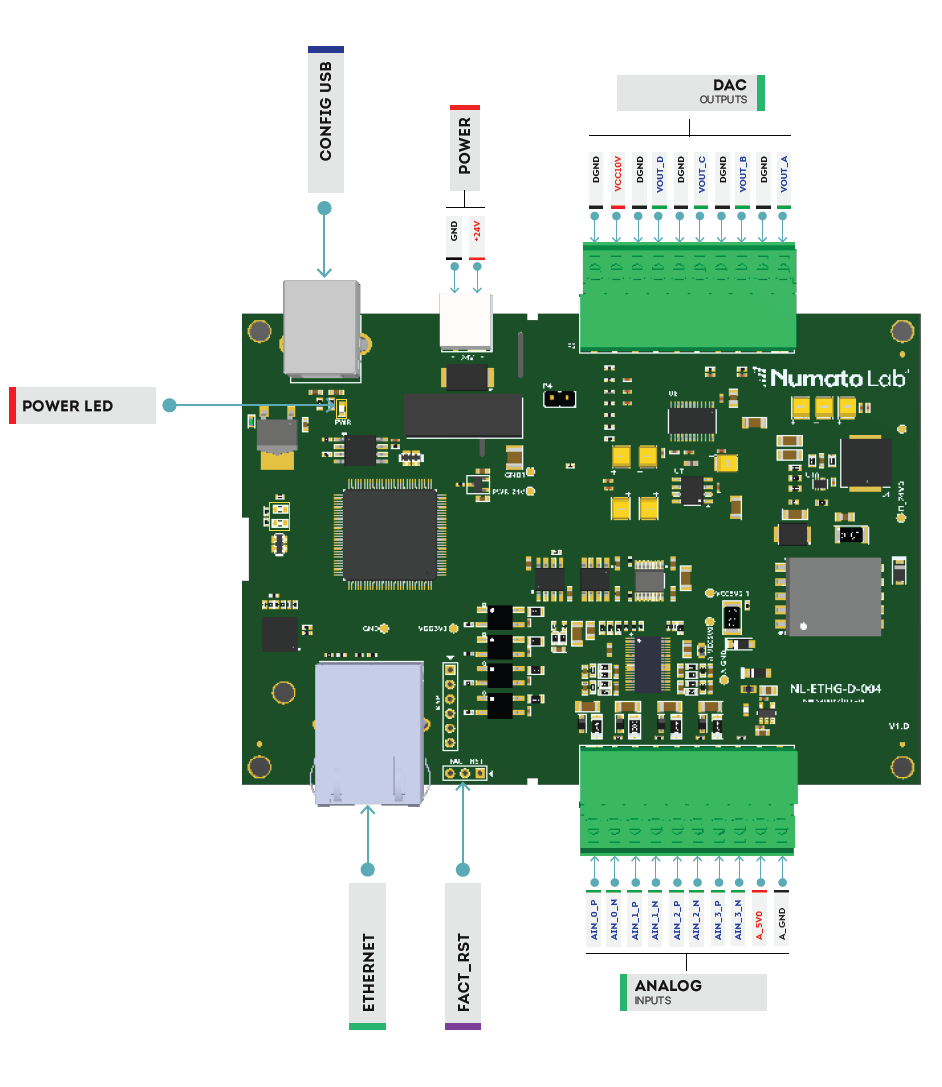

- ADC/DAC contacts available on easy-to-plug headers
- Can be controlled by using standard serial console applications through TELNET, web interface, HTTP, or custom applications
Applications
- Building automated test fixtures
- Add more Analog channels to industrial/modular computers
- Add more Analog channels to Raspberry Pi, Intel Edison, BeagleBone, and similar CPU boards
Specifications
| Attribute | Value |
|---|---|
| Analog Inputs(Max) | |
| Analog Input Resolution | |
| Analog Input Voltage Range | -10.24V to 10.24 |
| Digital To Analog Converter Inputs (Max) | 4 |
| DAC Resolution | 12 bits |
| Output low voltage | 0V |
| Output high voltage | 10V |
| Digital circuit power supply voltage (External) | 24V/1.5A |
| Host Interface | |
| Operating temperature | -40 to 80 degrees Celsius |
| Package Contents | |
| RoHS | Yes |
Sample Code
Sample Code
| Language/Technology | IDE/Compiler | Type | OS | Download link |
|---|---|---|---|---|
| Python | Python | Command Line | Windows | Download |
