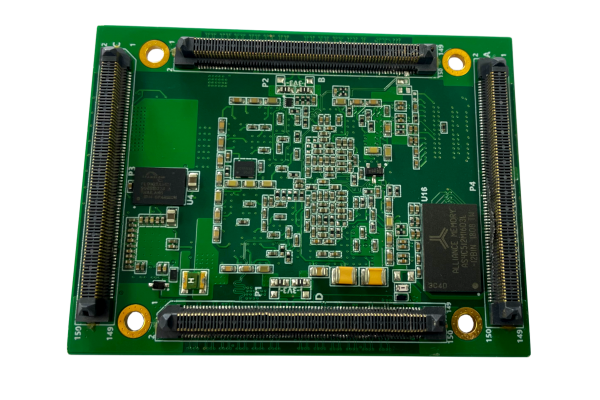

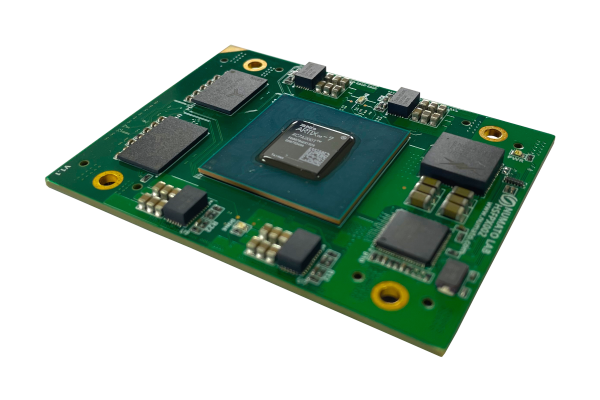

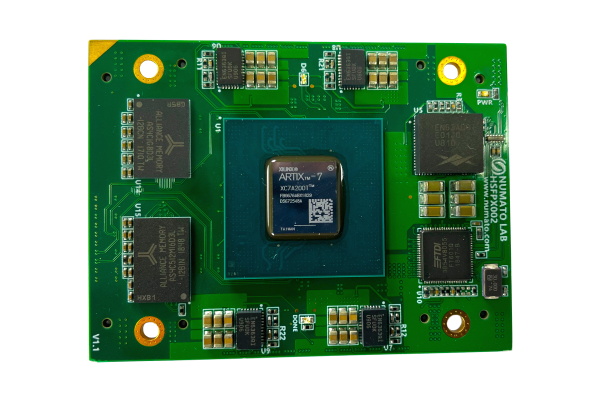

HSFPX002 is an easy-to-use FPGA module featuring the AMDArtix 7 FPGA with a total size of 24Gb DDR3 SDRAM. This board contains the AMDXC7A200T– FBG676 FPGA. This board features an Edge Rate® Rugged High-Speed Male connector, so this board works with the carrier boards (like Numato Lab’s HSFPX00X carrier board) that feature Edge Rate® Rugged High-Speed Female connectors. This board has the FT601 IC for the configuration and communication between FPGA and USB host.
Features

• FPGA: AMD Artix XC7A200T in FBG676 package
• DDR3: 1x8Gb DDR3 (MT41K1G8SN-125:A) & 2x8Gb DDR3 (MT41K512M16HA-125:A TR)
• Flash memory: 512 Mb Quadbit SPI flash memory (S25FL512SDSBHV210/IS25LP512M-RHLE)
• 1 x 100MHz CMOS oscillator
• 4x Edge Rate® Rugged High-Speed Male connector
• 8 GTP lanes (up to 6.6 GT/s)
• FTDI FT601 for FPGA and Host communication
• Onboard voltage regulators for single-power rail operation
• 1 Bi-color LED for custom use
• Maximum IOs for user-defined purposes
•   —FPGA – 96 Differential I/O pairs

Applications

• Product Prototype Development
• Accelerated computing integration
• Memory Intensive FPGA development
• Data Acquisition
• Educational tool for Schools and Universities
