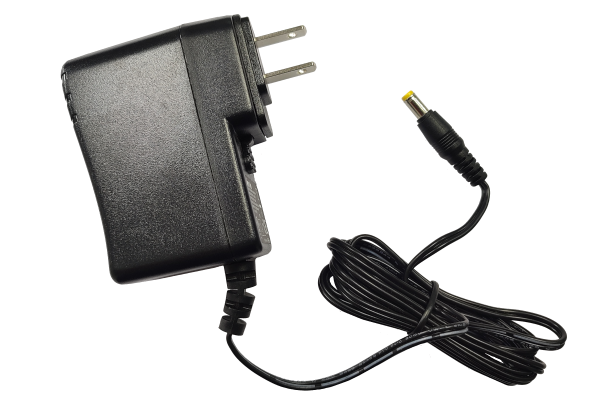

AC/DC Wall Mount Switching Mode Power Supply

SKU: NLWMPOW

Description Block diagram FAQ Resources Sample Code Specifications

AC/DC Wall Mount Switching Mode Power Supply

SKU: NLWMPOW

    Current configuration - Edit
  • Voltage - Output: none selected
  • Input Connector: none selected

$14.99

Features

  • Input – 100V-240V~50/60Hz
  • Output – 12V, 2A
  • Up to 24 W continuous power
  • No load power consumption < 0.1 W
  • Short circuit protection, Over Current Protection  and Over Voltage Protection
  • UL, EN, AS/NZS safety standard
  • DOE level VI

Applications

  • Home Automation
  • Lighting Control
  • Garden Equipment Control
  • Industrial Automation
  • Test Fixtures
  • DIY and Hobby

Configure your product

Select a custom configuration for your product. If you need an additional improvement or have any questions, please send us a message on the form below.

Voltage - Output

Input Connector

AC/DC Wall Mount Switching Mode Power Supply

SKU: NLWMPOW

    Current configuration -
  • Voltage - Output: none selected
  • Input Connector: none selected
Price:

$14.99

AC/DC Wall Mount Switching Mode Power Supply is an accessory for most of the Numato Lab’s GPIO, Relay Modules  and FPGA Modules.

General FAQs

Specifications

Attribute Value
Form

Wall Mount
Voltage - Input

100V-240V~50/60Hz
Voltage - Output

12V, 24V
Current - Output (Max)

2A, 1A
Power

24W
No Load Power Consumption

0.1W (Max)
Operating Temperature

0℃ ~ 40℃
Efficiency

Level VI
Output Connector

Barrel Plug R/A, 2.1mm I.D. x 5.5mm O.D. x 9.5mm
Input Connector

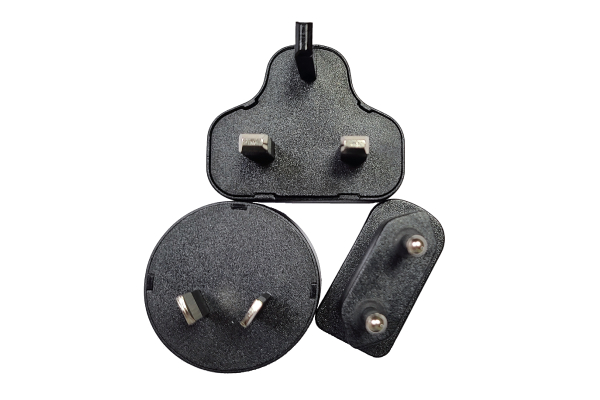

Type A (US), Type C (EU), Type G (UK), Type I (AU)
