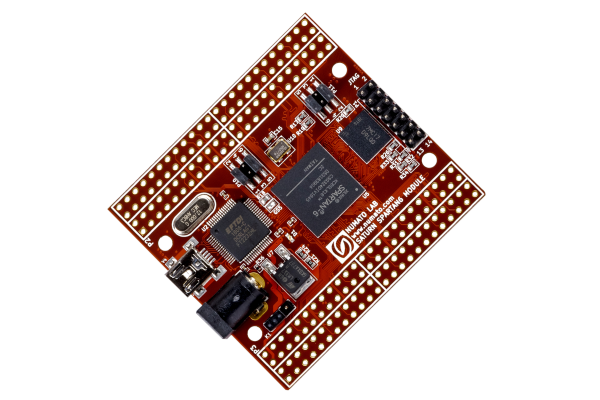

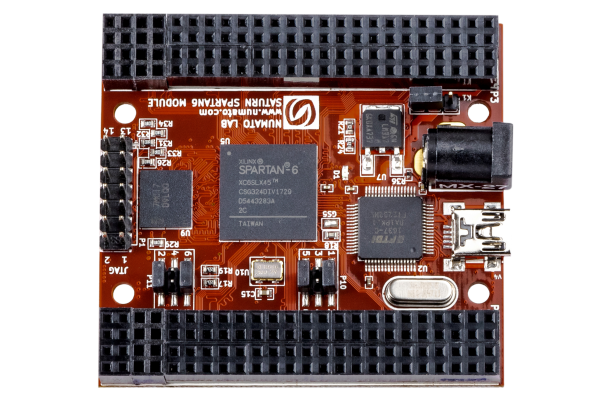

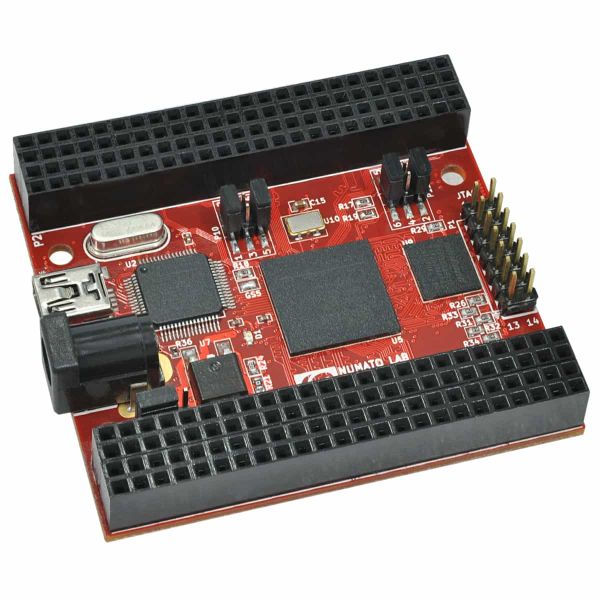

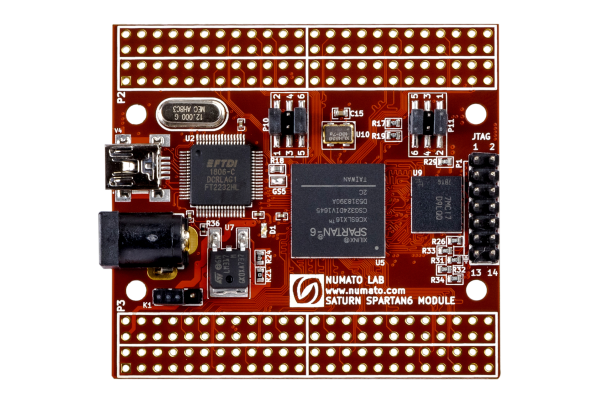

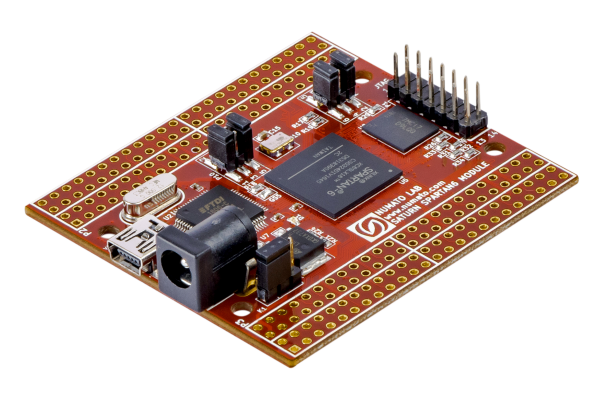

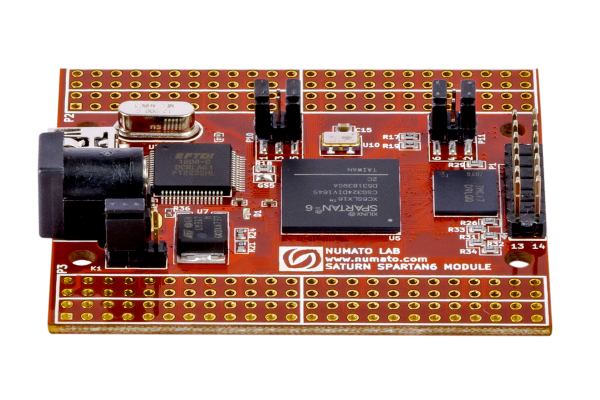

Saturn – S6 FPGA Development Board with DDR SDRAM
SKU: FPGA008
Request For QuoteWanna Customize? Drop Us A Line!

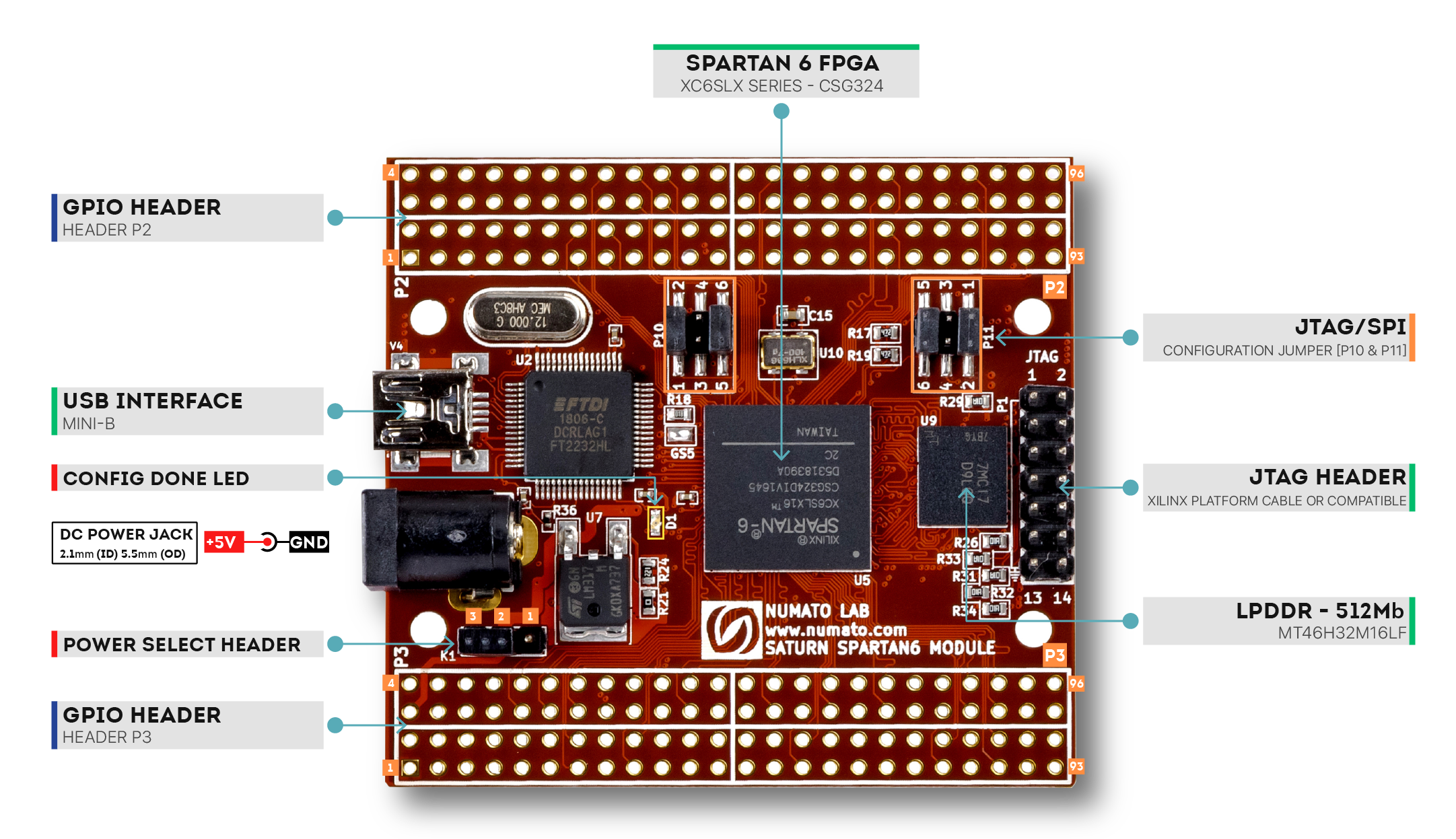

Saturn is an easy to use FPGA Development board featuring AMD Spartan 6 FPGA. Saturn is designed to be suitable for a wide variety of applications such as OEM integration, Prototyping, Experimenting, and learning system design with FPGAs, etc. This development board features the AMD Spartan 6 XC6SLX series FPGA with FTDI’s FT2232H Dual-Channel USB device. The high-speed USB 2.0 interface provides fast and easy configuration download to the on-board SPI flash. No programmer or special downloader cable is needed to download the bitstream to the board.
Features
- FPGA: AMD Spartan 6 LX45 in CSG324 package (other variants available, please contact us for details)
- DDR: 166MHz 512Mb LPDDR
- Flash memory: 128 Mb SPI flash memory
- 100MHz CMOS oscillator
- High-Speed USB 2.0 interface for On-board flash programming
- FT2232H Channel A is dedicated to SPI Flash Programming. Channel B can be used for custom applications.
- Onboard voltage regulators for single power rail operation
- FPGA configuration via JTAG and USB

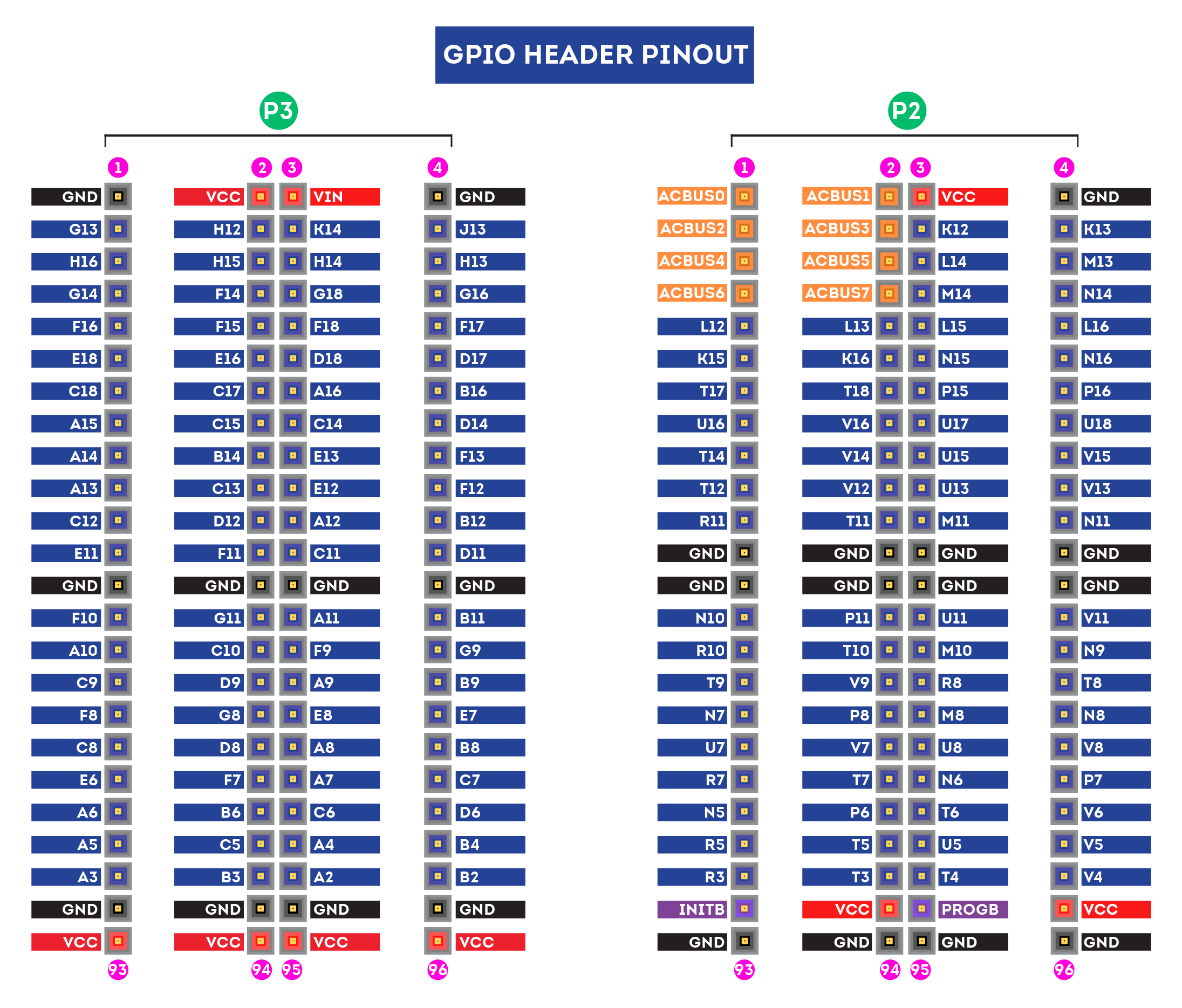

- XC6SLX16 – 150 IOs
- XC6SLX45 – 136 IOs
- FT2232H – 8 IOsMaximum 158 IOs for user-defined purposes
Applications
- Product Prototype Development
- OEM Integration
- Development and testing of custom embedded processors
- Signal Processing
- Communication device development
- Educational tool for Schools and Universities
Please review our latest addition to the FPGA family Narvi S7 FPGA Module featuring AMD Spartan 7 FPGA which can be the solution to develop and prototype more applications.
Downloads
Downloads
Knowledge Base
Knowledge Base
Specifications
| Attribute | Value |
|---|---|
| Weight | 0.12 lbs |
| Dimensions | 5 × 3 × 1 in |
| Product Dimensions | 2.47 x 2.26 x 0.59 in |
| FPGA | XC6SLX16, XC6SLX45 |
| Memory | |
| Primary Clock Frequency | |
| Number Of GPIOs (Max) | |

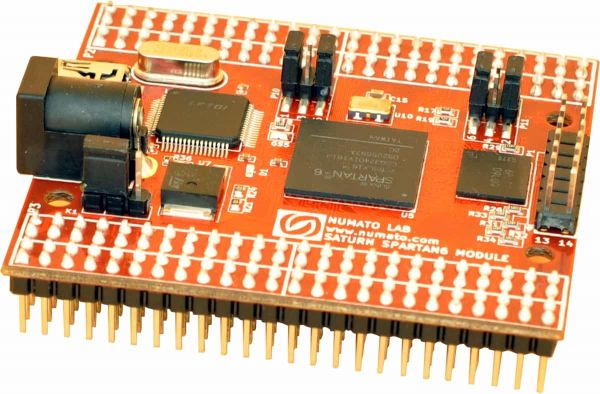

| Header Type and IO Headers | Male Header on Bottom, Female Header on Top, Ship Separate |
| Configuration Options | |
| HTS | 8542.39.0001 |
| ECCN | EAR99 |
Sample Code
Sample Code
| Name | Language/Technology | IDE | Hardware Modules Required |
|---|---|---|---|
| 16x2 LCD Display | Verilog | Xilinx ISE | Saturn IO Breakout Module Alphanumeric LCD Display Expansion Module |
| LEDs | Verilog | Xilinx ISE | Saturn IO Breakout Module LED Expansion Module - 8 LEDs |
| Push Button Switch | Verilog | Xilinx ISE | Saturn IO Breakout Module Push Button Switch Expansion Module |
| Seven Segment LED Display | Verilog | Xilinx ISE | Saturn IO Breakout Module Seven Segment LED Display Expansion Module |
| 8Bit VGA | Verilog | Xilinx ISE | Saturn IO Breakout Module VGA Display Expansion Module |
| LM4550 AC97 Audio | Verilog | Xilinx ISE | Saturn IO Breakout Module LM4550 AC97 Expansion Module |
| CS4344 Stereo Audio | Verilog | Xilinx ISE | Saturn IO Breakout Module CS4344 Audio Expansion Module |
| 100M Ethernet | Verilog | Xilinx ISE | Saturn IO Breakout Module 100BASE-T Ethernet Expansion Module |
| HDMI Transmitter | Verilog | Xilinx ISE | Saturn IO Breakout Module HDMI Transmitter Expansion Module |
