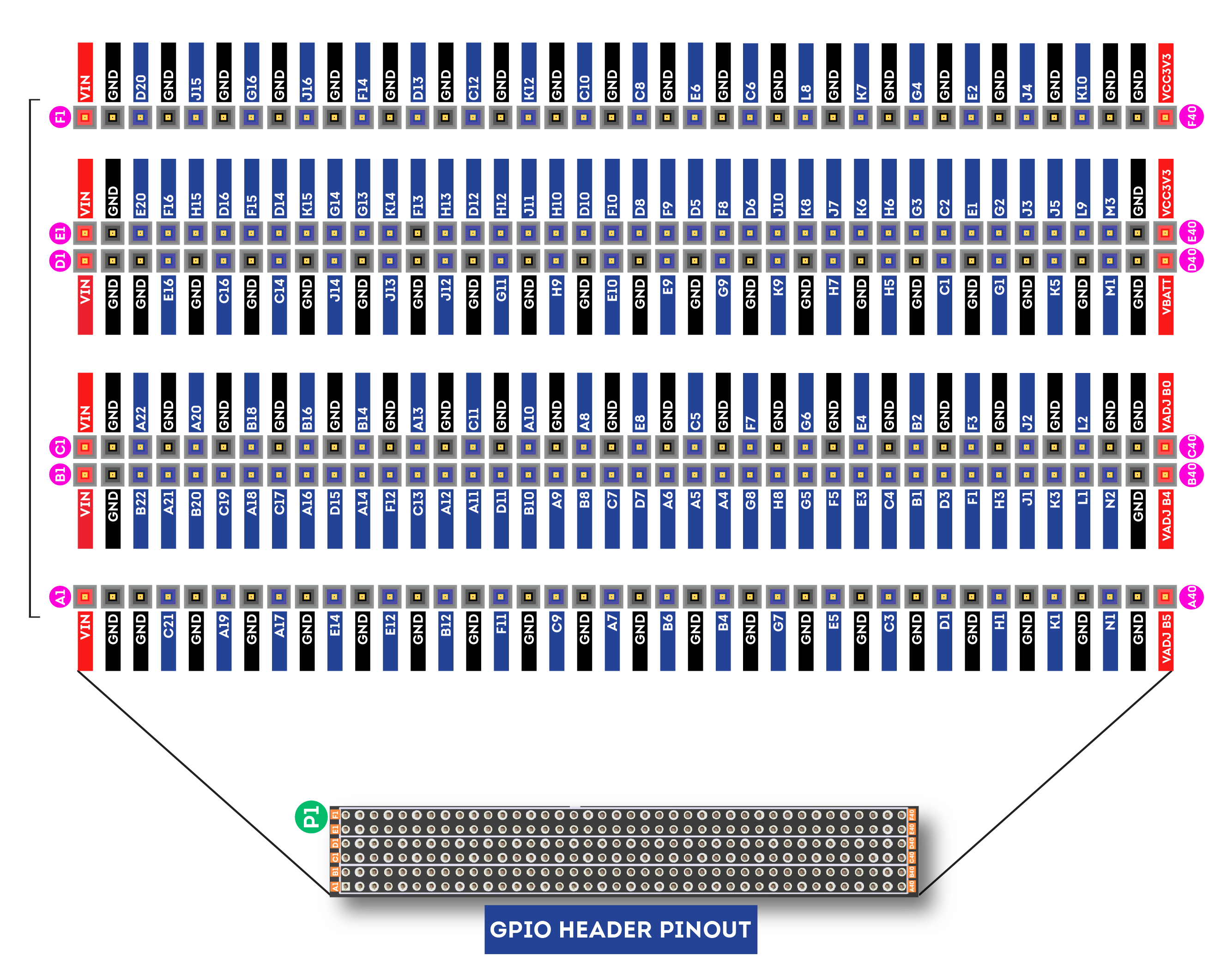

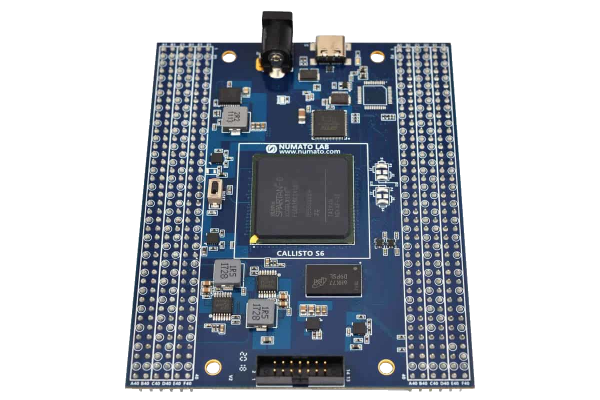

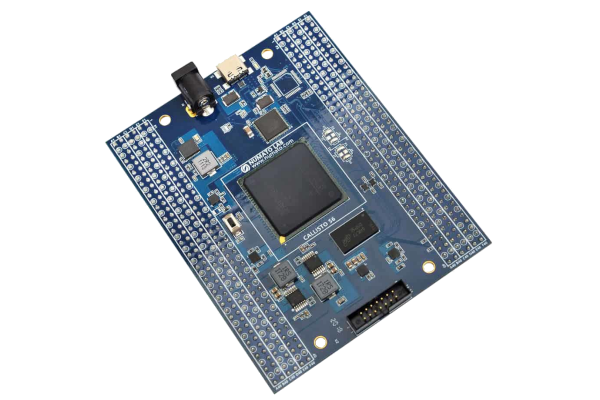

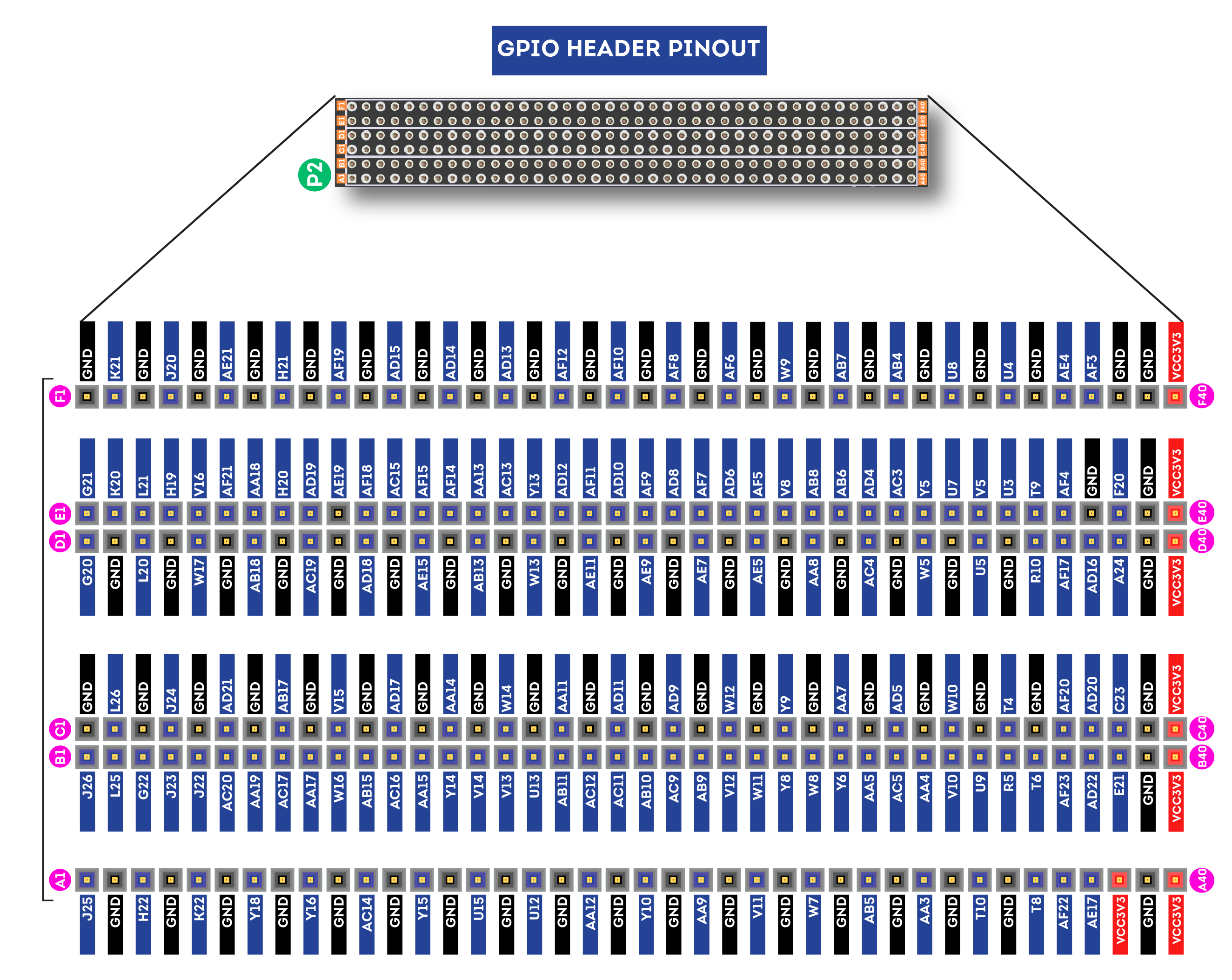

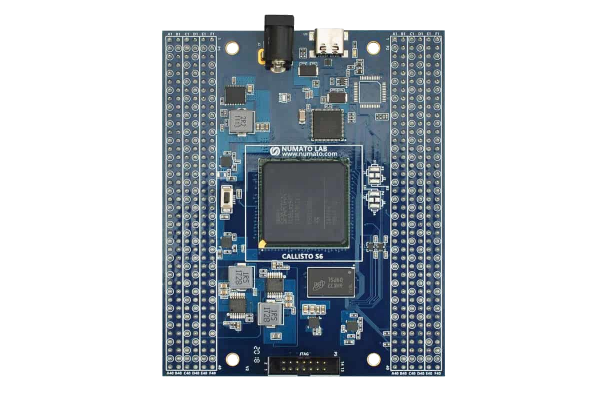

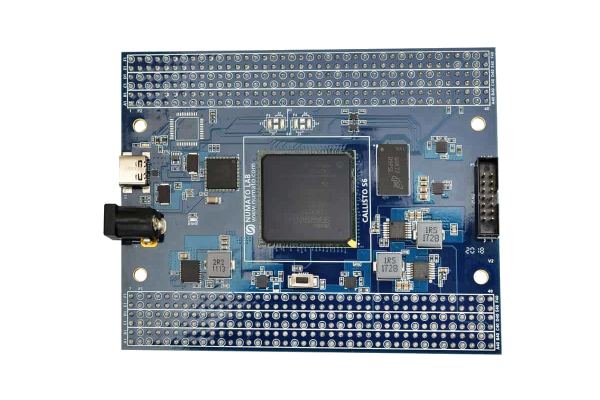

Callisto S6 is an easy-to-use FPGA Development board featuring the AMD Spartan 6 FPGA with 2Gb DDR3 SDRAM. This board contains the AMD XC6SLX150– FGG676 FPGA. The high-speed USB 3.1 interface (USB-C connector) provides a fast communication interface between FPGA and the host PC. The Development board also provides easy access to JTAG signals on a standard Xilinx Platform Cable compatible header. Callisto S6 provides the user with the flexibility of adding their own peripherals through IO Expansion Headers.

Features

• FPGA: AMD Spartan XC6SLX150 in FGG676 package
• DDR3: 2Gb DDR3 (MT41J128M16HA-125:K or equivalent)
• Flash memory: 128 Mb Quadbit SPI flash memory (N25Q128A13ESE40E)
• 2 x 100MHz CMOS oscillator
• USB 3.1 Gen1 @5Gbps (USB Type-C connector)
• JTAG header for programming and debugging
• 12V DC power supply
• A Push Button for the reset pin
• 284 IOs for user-defined purposes
• All user IOs are length matched and can be used as differential pairs
• Onboard voltage regulators for single power rail operation

Applications

• Signal Processing
• Product Prototype Development
• Communication devices development
• Educational tool for Schools and Universities
• Development and testing of custom embedded processors
• Accelerated Computing Integration
