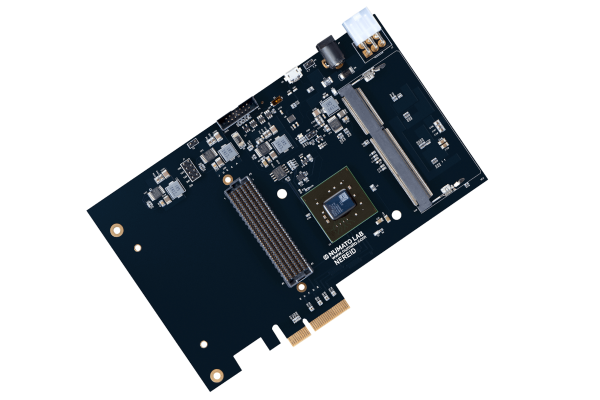

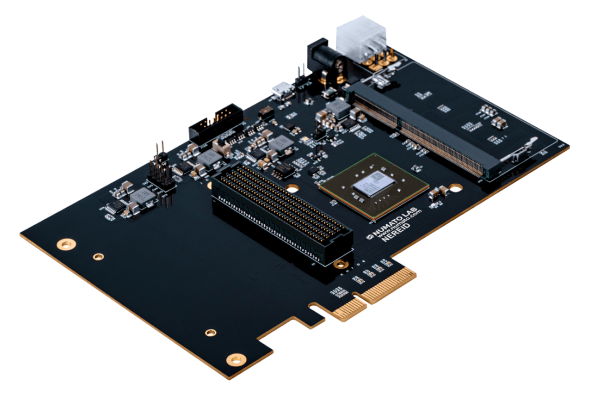

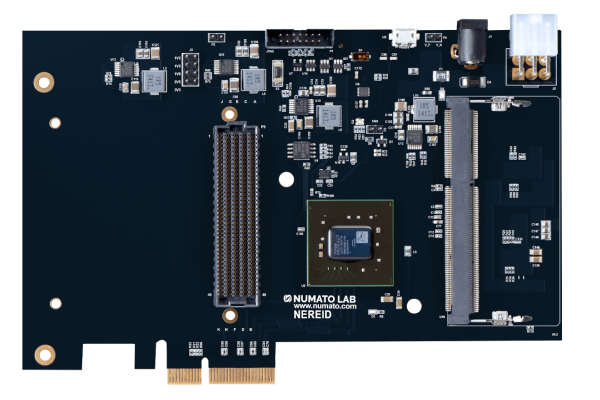

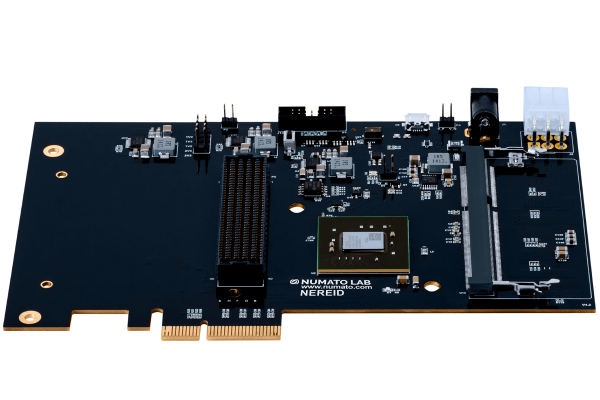

Nereid is an easy-to-use FPGA Development board featuring AMD Kintex-7 FPGA with x4 PCIe interface and 4GB DDR3 SDRAM. The board has  AMD XC7K160T– FBG676 FPGA; other FPGA configurations are available at request. Nereid features a High Pin Count (HPC) high-speed FMC connector for the purpose of adding additional features to the board by using custom or commercial off-the-shelf daughter boards.

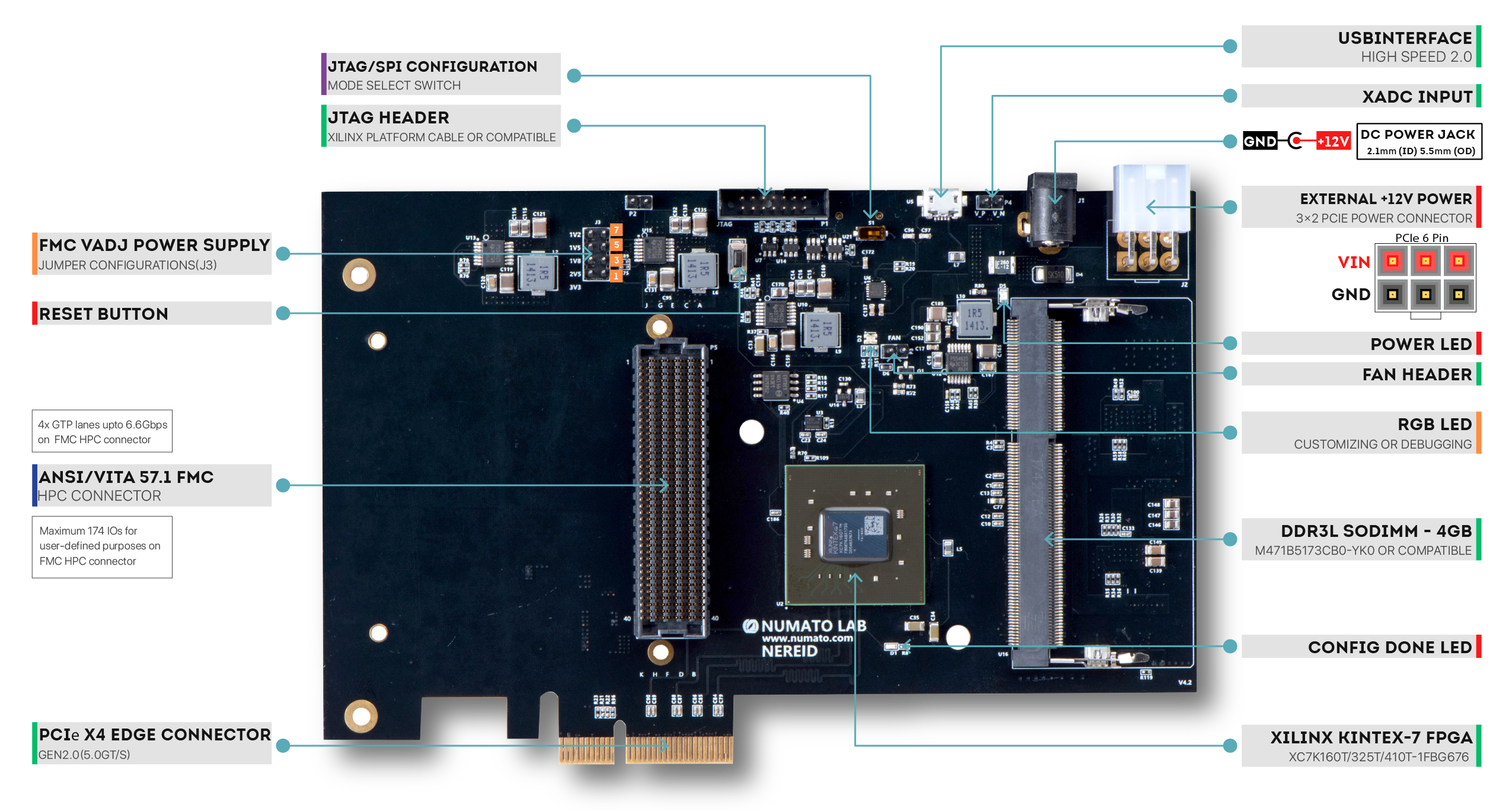

Features

• FPGA: AMD Kintex-7 XC7K160T-1 FBG676 package (Other devices available at request)
• 4 lane PCIe Gen2.0 (5GT/s) interface at maximum 2GB/s
• 4GB DDR3L SODIMM SDRAM M471B5173CB0-YK0 1600MHz (included)
• 128 Mb QSPI flash memory (N25Q128A13ESE40E) for Configuration and optional data storage
• USB to UART serial converter
• 1 x 100MHz CMOS oscillator, 1x 150MHz LVDS oscillator for users
• 1 x 150MHz LVDS oscillator for GTP
• ANSI/VITA 57.1 Standard compliant FMC HPC connector
• Maximum 174 IOs for user-defined purposes on FMC connector
• Onboard voltage regulators for single power rail operation
• Can be powered from PCIe slot or from an external power supply
• JTAG header for programming and debugging
• All differential pairs are length matched on the board
• 1 RGB LED for custom use

Applications

• Parallel processing and accelerators
• Development and testing of custom embedded processors
• Signal Processing
• Communication device development
• Data Acquisition
• Educational tool for Schools and Universities

* Fan available only on larger FPGA variants.
